Setup Java environment for TFS Build
Download the Dump software’s which
we can un zip and make use of it no need of installation.
1.
Download Apache Ant from below link
2.
Download Java JDK from below link
3.
Download Apache tomcat from below link
4.
Download TFS build Extension from below link
5.
Download eclipse from below link
http://eclipse.org/downloads/
6. Download Horizons java project from below link
http://templated.co/horizons/
6. Download Horizons java project from below link
http://templated.co/horizons/
Steps for Setup
2.
Un zip the apache tomcat folder and copy to C
drive or if it is exe file install it
3.
Un zip the java folder and copy to C drive or if
it is exe install it
4. Go to “My Computer” Right click and select “Properties”
5. Click on “Advance System Settings”
6. Go to “Advance Tab” and the click on “Environment
Variables”
7. Under “system variables” section click on “New”
8. Set the Environment variables for
Ant, Java, Apache Tomcat
For ant give the variables and click on ok
Again click on new For java give the variables and click on
ok
Again click on new For Tomcat give the variables and click on
ok
9.
Now go to “path
variable” and click on edit
Append the variables at the end of the “path
variable” like
%JAVA_HOME%\bin;JAVA_HOME%\lib;%ANT_HOME%\bin;%ANT_HOME%\lib;%CATALINA_HOME%\bin;%CATALINA_HOME%\lib;
10.
For apache tomcat change the port number
Open server.xml file “C:\apache-tomcat-7.0.55\conf\server.xml”
Now I am changing the port 8080 to 6767 and save it
11.
Now enable the users
Open tomcat-users.xml “C:\apache-tomcat-7.0.55\conf\tomcat-users.xml”
Now remove the comment surrounded the roles and user tag(<!-- -->)
And add two lines highlighted and save it
12.
Now start the tomcat and check it working
Got to the path “C:\apache-tomcat-7.0.55\bin”
Right click on statup.bat and click on “Run as Administrator”
Then tomcat will start you will see the CMD screen like this
13.
Now go and launch browser with this URL http://localhost:6767
14.
Click on Manage App it will prompt the windows
security window then give the credentials (the credentials which you given in
this file “tomcat-users.xml” where you add two line in it).
After click on ok you will see the projects list screen which are in
tomcat server.
15.
Now install the TFS build Extension on build server
Click on next
Select “I Agree” and click on next
Click on next
Click on next
Installation is completed click on close.
16.
Setup project in eclipse
Note:(If it is existing eclipse project goto file->import->select
“existing project to work space” Give the path of the project and click on
finish)
Open eclipse
It will prompt for work space
give any path and click on ok
Now go to
file->new->dynamic web project
Give the project name and click
on next
Click on next
Check the option Generate
web.xml and click on finish
You will see the project
Open the “Horizons project” which you downloaded from above link copy all the content in it
Past it in the eclipse project
which you created horizons->webcontent (under web content folder past the
files)
Generate the build.xml file
using export option
Right click on project click on export
Select ant and click on next
Select the project and click on
finish
You will see the build.xml file in project
17.
Install Team explore every where
1. Open Eclipse.
2. On the Help menu,
choose Install New Software.
The Install dialog
box appears.
The install wizard looks slightly
different for different versions of Eclipse.
3. Choose Add.
The Add Repository dialog
box appears.
4. In Name, enter TFS
Plugin for Eclipse.
5. In Location, enter http://dl.microsoft.com/eclipse/tfs,
and then choose OK.
6. In the list of features in the Install dialog
box, select the check box that corresponds to Team Explorer Everywhere, and
then choose Next two times.
Note: uncheck
Contact all update sites during install to find required
software
7. Accept the
Microsoft Software License Terms, and then choose Finish.
8. Restart Eclipse
when prompted click on restart.
18. Open team explore
everywhere.
Window ->show view ->other
And select Team explorer click on ok
After team explorer window will open add the TFS server
19.
Share the project which is created in the
eclipse
Select the team foundation server and click next
Select the team project to share the web project and click next
Click on finish
After finishing the sharing go to team explore -> pending changes
We can see the pending changes of the project shared click on check-in
It will ask for conformation to check in click on yes
We can see the changeset created
20.
Go to build and create the new build definition
Give the name of the build
In trigger select manual build
In source settings give the TFS path for the project
In build defaults
In project File click on create(here we can see the warning)
Select the ant click on next
We generated build.xml in previous steps
Select the build.xml and click on next
Here in drop down select default which will take the version of the java
and ant we configured
Note: (if we want to run this project on different versions in drop down
select the source control refer the link "http://msdnsolutions.blogspot.in/2015/07/java-to-build-in-different-versions.html”)
Click on finish
After finishing warning will be gone it will create a .TFSproj file in
version control you can check it.
Click on ok
21.
Now trigger the build
Click on queue
You can see the build has been passed
22.
For release management use the template we
provided
Add the ReleaseUpgradeTemplate.xaml to that team project and check in it.
(download build template form here ReleaseUpgradeTemplate.xml)
(download build template form here ReleaseUpgradeTemplate.xml)
Goto team explore in visual studio -> builds
Select the horizonss build which we created
Select the template which we checked-in
In Release Build option select “True”
In configurations to Release select “Any CPU and Release” And save the
build
Now goto release management client create a release path.
In deployment from drop down select xcopy Deployer and then click on save
Now go to release templates double click on template created now
On components right click and add the component we created
Drag and drop the server where the tomcat is there in my case VSALM
server

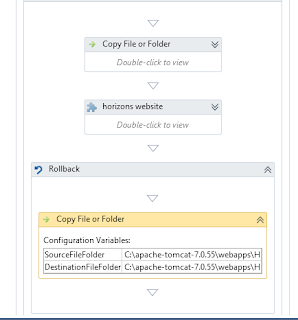

Drag and drop the copy file or folders for back up the existing content
in tomcat server
Note create a folder in tomcat install path -> webapps -> create a
folders horizons and horizons backup (source=horizons, destination= horizons
backup)
Drag and drop component we created
And give the path of Horizons which is created in above step
Now
go to the Property and linked the build
Now go to eclipse modify the index.html page and save the file and go to
pending changes and check in.
Now trigger the build
Go and check in RM client the project has been released
Now go to browser URL http://localhost:6767/
And click on manage app and then you can see the projects list
Here we can see the projects horizons and horizons backup
Click on horizons
Here we can see the change which we modified in index.html file
